Compatibility

Simulator export guide

Turn a TrackMan session into one Divot Card.

Use a shot-level TrackMan export so DivotData can detect the pattern, show the evidence, assign one practice block, and tell you how to retest the same setup.

Get your first free cardSee a sample Divot Card

Current beta status

TrackMan

Beta

Best upload

TrackMan CSV, XLSX

File types

.CSV, .XLSX, .TXT

Confidence boost

Club, carry, offline, launch, spin

Mechanical proof

Needs impact data or coach review

DivotData reads shot rows, not summary screenshots. Missing optional metrics lower confidence instead of breaking the flow.

What to upload

Shot-level data works better than summary reports.

Use TrackMan Performance Studio's Shot History table export in Trackman CSV format.

Compatibility note: Face/path and launch direction improve confidence when present.

Who this is for

Home simulator golfers who want a practical answer to what changed today and what to practice next.

What improves confidence

Clear club labels, one row per shot, carry or total distance, offline/deviation, launch, spin, shot order, and a matched retest.

Export steps

Prepare the file before you upload.

Use the cleanest export path available. If the source only gives a table, copied rows can still be useful.

  1. 1Open TrackMan Performance Studio.
  2. 2On the home page, click All Activities, then click Shot History.
  3. 3Select the session and highlight the shots you want to export.
  4. 4Click the View Selector and choose Table View.
  5. 5Click the export icon in the top-left, open File Options, choose Trackman CSV, and click Export.
  6. 6Name the file, choose a folder on the PC, and confirm.
  7. 7Return to DivotData and use the upload box at the top of the page.
  8. 8Drop the exported file on the upload box or click Choose files. If your source only shows a table, paste the copied rows into Paste Table Text.

Click-by-click walkthrough

Export TrackMan TPS shot rows as TrackMan CSV.

TrackMan publishes an official TPS CSV export guide with screenshots for table view, the export icon, and the file-format picker. DivotData uses that path because it preserves shot-level evidence.

  1. 1Official step: Shot History

    Open Shot History

    Launch TrackMan Performance Studio, open All Activities, then select Shot History.

    Note: Pick the completed session you want to analyze before exporting. Live Shot Analysis can also export, but saved Shot History is easier to verify.

    No fixed screenshot

    This screen can vary by device, operating system, or account state. Follow the note and choose the option that produces a CSV or other shot-level table file.

  2. 2Highlighted: Table View

    Switch to Table View

    Use the View Selector and choose Table View so the shot rows are visible.

    Note: Table View is the safer DivotData path because it confirms you are exporting rows, not only a visual report.

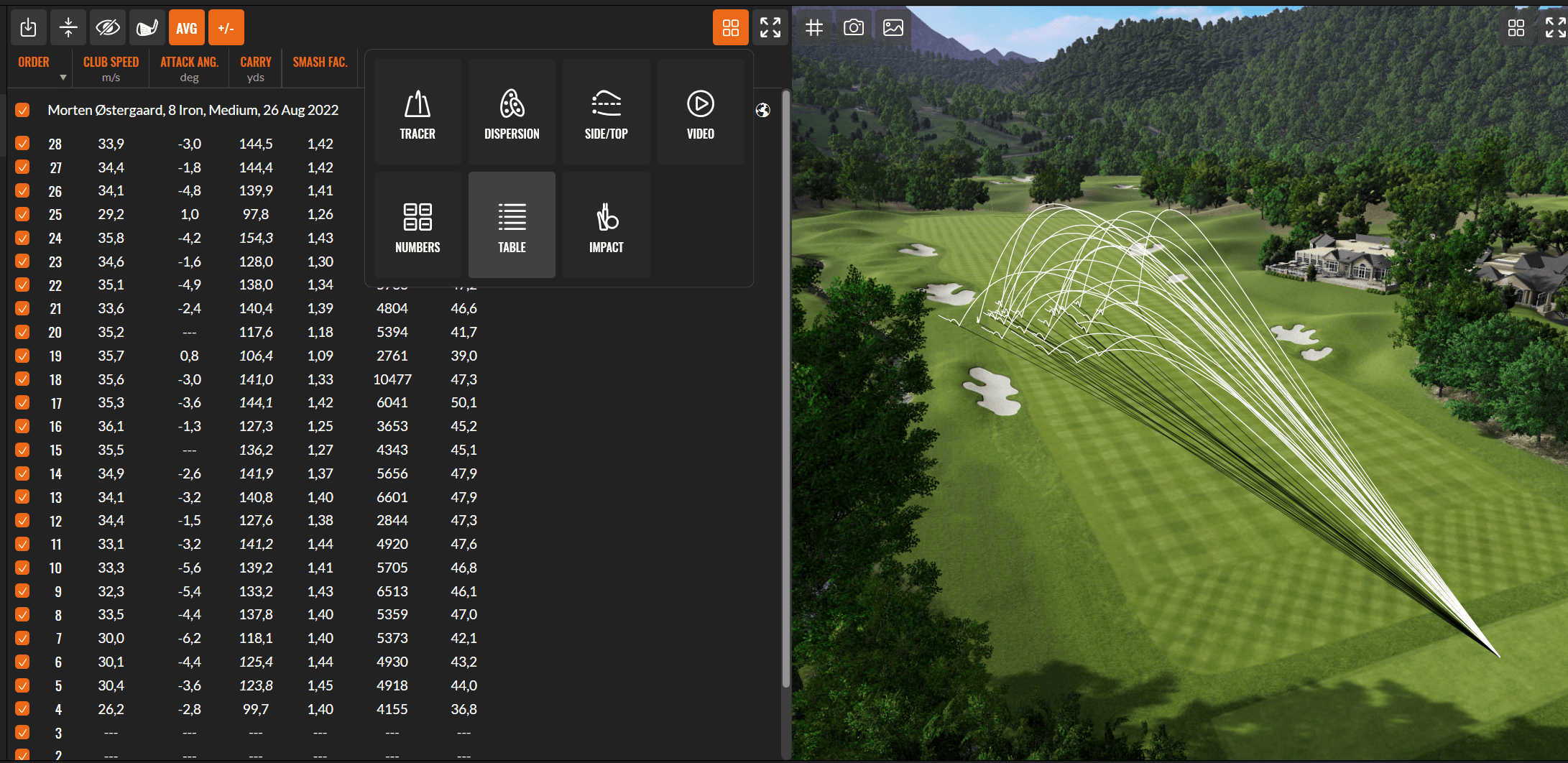

    TrackMan Performance Studio table view selector with shot rows visible.
  3. 3Highlighted: Export

    Click the export icon

    Click the export icon in the top-left corner of the TrackMan table view.

    Note: Select the shots you want first if you only need one club or one practice block.

    TrackMan Performance Studio shot table with the top-left export icon highlighted.
  4. 4Highlighted: TrackMan CSV

    Choose TrackMan CSV

    Open File Options, choose TrackMan CSV File, then export the selected or full shot set.

    Note: Prefer TrackMan CSV for DivotData. PDF and visual reports are useful for review, but they are weaker for parser confidence.

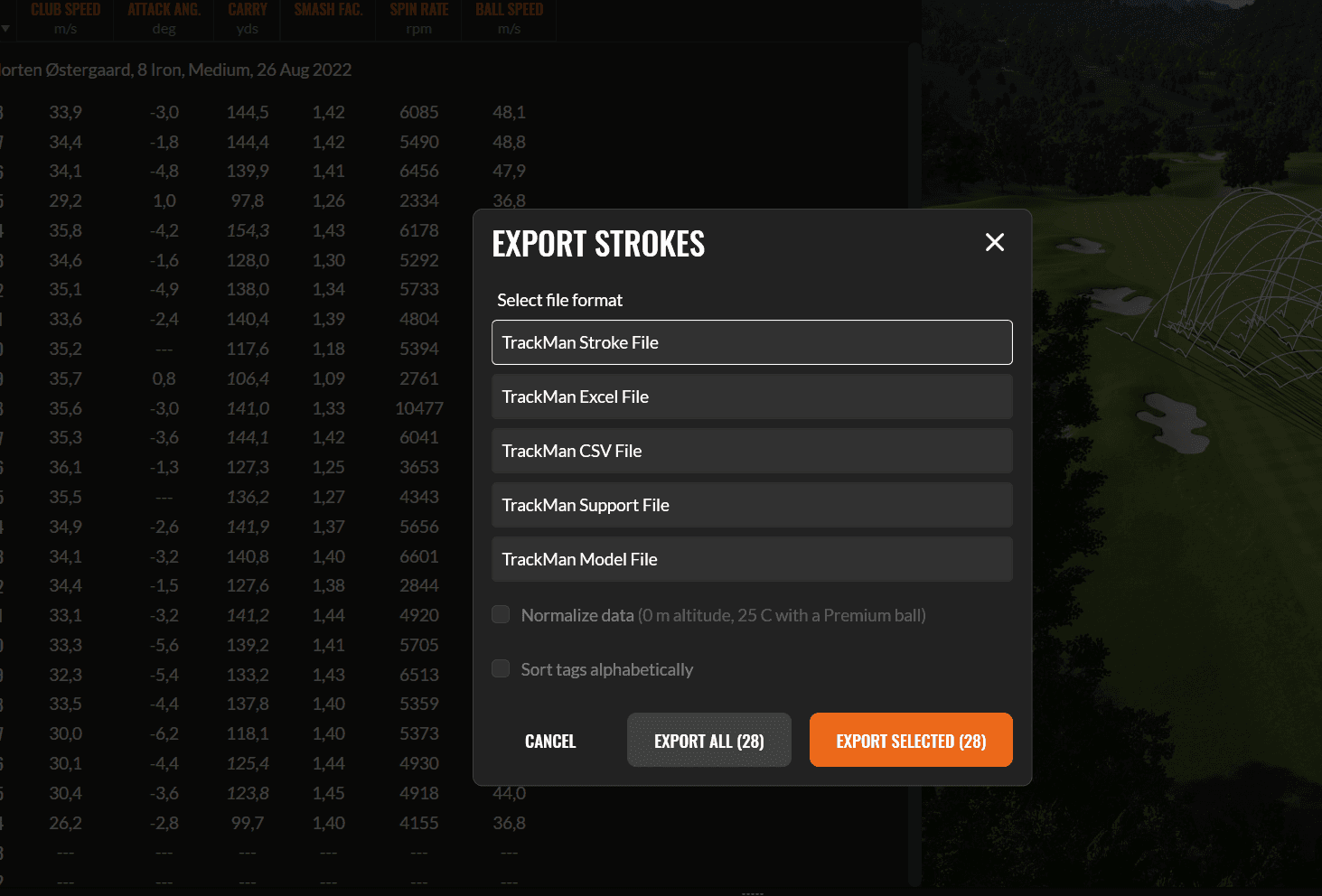

    TrackMan export strokes dialog showing TrackMan CSV File as an export option.
  5. 5Next click: DivotData upload box

    Upload to DivotData

    Return to DivotData, keep the source set to TrackMan, then drop the CSV or click Choose files.

    Note: The strongest card usually keeps club, carry, offline, launch direction, spin, curve, face/path, and attack-angle columns.

    No fixed screenshot

    This screen can vary by device, operating system, or account state. Follow the note and choose the option that produces a CSV or other shot-level table file.

Official source: TrackMan TPS CSV export. Labels and DivotData notes are written for the upload-to-card workflow.

Expected metrics

Metrics DivotData looks for in TrackMan files.

ClubCarryTotal distanceOffline or deviationLaunch angleSpin rateBall speedClub speedSmash factorLaunch directionCurveClub pathFace angleFace to pathAttack angle

Data quality tips

  • Export the full shot table, not only summary averages.
  • Keep face/path and launch direction columns when available.

What this cannot prove alone

  • Some account, coach, or facility setups restrict direct export from player-facing portal views.
  • Launch-monitor data can detect patterns, but exact swing mechanics still need richer context, strike data, or coach review.

Sample proof

The upload is only useful if it becomes a focused card.

A Divot Card should show pattern detected, evidence, confidence, likely focus, what not to chase, the practice block, and a matched retest protocol.

Upload TrackMan dataSend an export sample
Source: TrackMan TPS CSV exportSource: TrackMan portal reports

Sample Divot Card

Low-right / low-fade pattern

Open

Today's focus

18-minute 8-Iron Reset

A short block that narrows start line first, then checks face control, then checks strike/low point.

18 min
Club8-iron
PatternLow-right fade
ConfidenceMedium · 64/100

Start with

Start-line gate

Start the ball through a narrow target window before judging curve.

VideoOpen

Why this card

Data quality

82/100

good beta file

Sample

20 shots

Matched stock 8-irons

Coach-style note

The ball-flight pattern is clear enough to practice, but the exact mechanical cause should stay a hypothesis until a coach or impact evidence validates it.

Get your first card free

Demo card. Launch-monitor data can identify patterns and confidence levels, but it does not prove exact swing mechanics by itself.
